Product Description

Environmental Condition of utilization:

  • Temperature: -25～+70℃:
  • Relative humidity: below95%
  • Rated Voltage: 30V (DC)
  • Rated Current : 1 A

Specifications:

Order Item Experimental Condition Target
1 Outward Appearance Visual Measurement Metal surface should be smooth and not be corroded by rust.Plating should not crease or peel off.Plastic casing should not be uneven,crude or have any cracks or damage

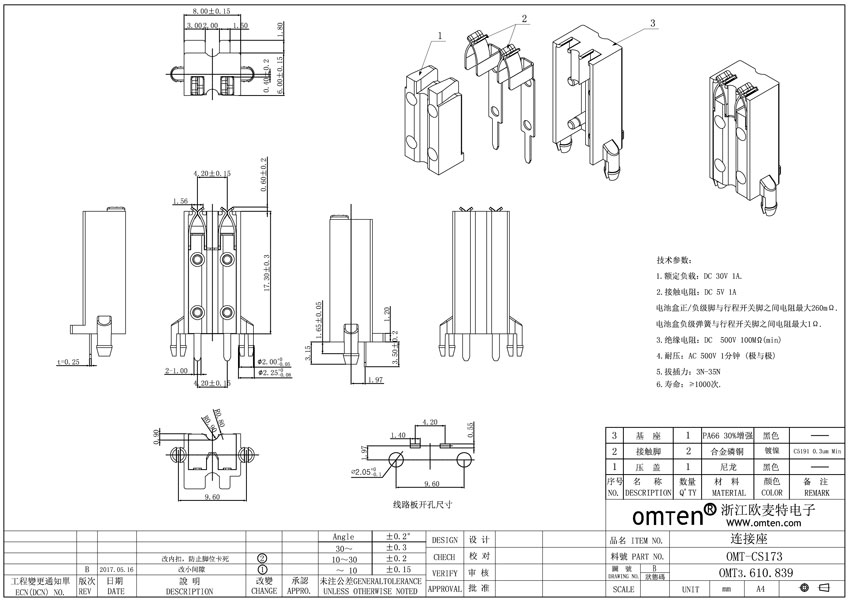

2 Dimensions Socket installation size,coordination size should be in accordance with the requirements of the drawings of this product. According to the size of the drawing and folerance
3 Voltage Resistance Normally: 50HZ AC 500V 1min The insulation of different parts conducting electricity should bear the function of experiment voltage and there are no punctures on it.
4 Insulation Resistance Experimeht Voltage:DC 500V±15V Normally: ≥100MΩ
5 Contact Resistance Applying a static load twice the actuating force to the center of the stem, measurements shall be made with a 1 kHz small-current contact resistance meter.
6 Insertion and Pulling out Forces The force is measured when the inserting or pulling out is done in the direction of the aperture axis with a standard plug . 3N-35N
7 Heat Resistance (1) Temperature: 85±2℃
(2) Time: 96 hours Following the test set forth below the sample shall be left in normal temperature and humidity conditions for one hour before measurements are made.		 Outward appearance conforms to the stipulation of Article 1. Insulation resistance conforms to the stipulation of Article 4.
8 Resistance to Low Temperatures (1) Temperature: -30±2℃
(2) Time: 96 hours
(3) Water drops shall be removed
Following the test set forth below the sample shall be left in normal temperature and humidity conditions for one hour before measurements are made:		 Item 2~5
Item 6
Item 7
9 Temperature and humidity test Following the test set forth below the sample shall be left in normal temperature and humidity conditions for 1h before measurements are made：
(1)Temperature：85±2℃
(2)Relative humidity：85%
(3)Time：96h
(4)Dripping should be get rid of.		 Good function, the parts without deformation, damage, etc.
10 Judgement of Qualified Product Batch The presented batch of products is checked before acceptance according to the plan of a normal and general sample check up.It is in the light of“Checking up every batch and counting the number”is sampling procedure of CB2828’s inspection level. The AQL value of qualified products is 1.0
11 Packing The sockets are packed in a plastic bag or a car-board box, which is placed into a damp-proof and dust-proof packing box with a shipping bill. The shipping bill,packing box and the car-board box should be impressed with the product name,type,quantity and the manufacture,production date and inspection stamp.
12 Shipment Products packed in a box can not be placed upside down or pressed with heavy objects on it,They can be shipped by any means of transport. Products should be shipped under the condition of being free from rain or snow in a dry place.
13 Storage The environment temperature of products packed in an unopened box is -10～+40℃.Its relative humidity is below 80%.Keep in a warehouse without acid, alkaline and corrosive air around it. Storage period is half a year after production date.
