Product Description

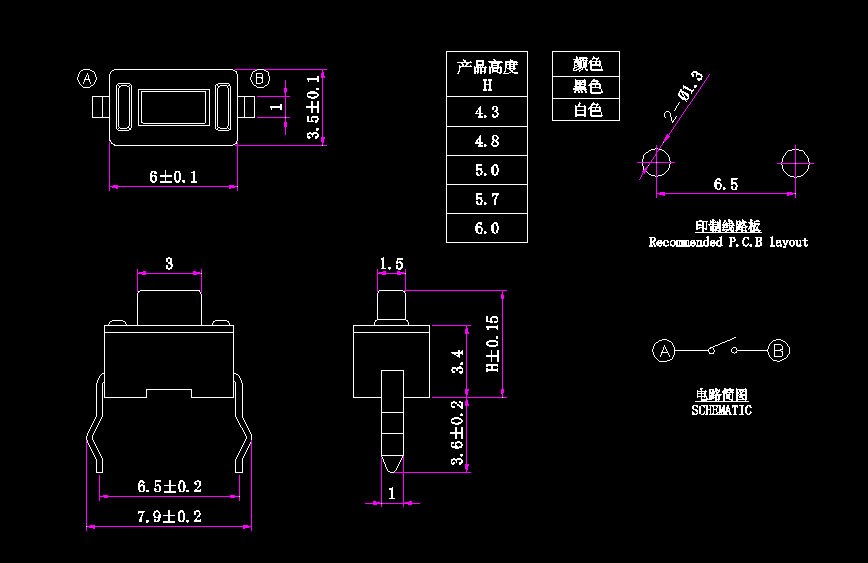

TSY36H 2 pin Tact Switch

Life:≥100,000 cycles.
Contact Resistance:≤50mΩ
Insulationg Resistance:≥100MΩ
Operating Force:130/180/250/320+50/-50gf
Withstand Voltage:AC250V 1min
Raiting: DC12V 50mA
Operating Temperature:-20~70℃
